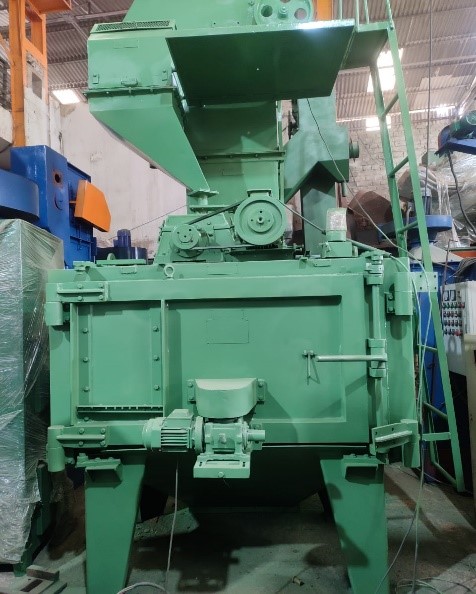

Table Type Shot Blasting Machine
Table type shot blasting machine comprises of one/ two rotary table for loading of the constituent. This table straddling on the door swings inside the cabinet, thus it is also called Swing Table Blasting Machine, and the blast wheel on the uppermost cleans the section. The table rotates in a circular and anticlockwise direction to guarantee the blasting surface's thorough cleaning by the blast wheel.
The table shot blasting machine is commonly known as Swing Table Shot Blasting Machine, which comprises rotary tables for the component loading. This shot blasting table soars on the door swings inner surface the cabin and the blast wheel on the top clean the component.
This table type shot blasting machine comprises a round table over which the ingredients or material to be blasted are kept. The swing table rotates vertically, hence exposing the components to the blast stream by the blast wheel. This blasting machine has an additional table hinged to them to reduce the cycle time. The second part of the table is on another side of the opening that rides and loaded when the blasting is in technique on the first one. Table Shot Blasting Machines are available at a very reasonable price.
Applications of Table Type Shot Blasting Machine
- Suitable for Cleaning of castings and forgings
- Descending and scarping of casting and forgings
- Shot peening of heavily stressed components
- Eradicating of heat-treated scales
- Attractive finishing of tint part of aluminum, zinc, and alloy steels
- Groundwork of surfaces for a protective coating
- Provides maximum ROI from one day one of installation
- Suitable for deburring
- Table Type Shot Blasting Machine Manufacturer
It also consist a round table over which, the ingredients to be blasted are placed and the table rotates vertically therefore exposing the components to the blast stream. These machines also have another table hinged to them in order to reduce the cycle time. The second part of the table is on other side of opening which is offloaded and loaded when the blasting is in process on the first one. Our table type shot blasting machines are available at very competitive price.
| DESCRIPTION / MODEL | AFST-36 | AFST-48 | AFST-72 | ||||
| SD | DD | SD | DD | SD | DD | ||
| WORK TABLE DIA IN | INCHES | 36 | 36 | 48 | 48 | 72 | 72 |
| mm | 914 | 914 | 1220 | 1220 | 1830 | 1830 | |
| Table | RPM | 10/12 | 10/12 | 10/12 | 10/12 | 6 | 6 |
| Impeller Dia | MM | 300 | 300 | 380 | 500 | 500 | 500 |
| Width | MM | 65 | 65 | 65 | 65 | 65 | 65 |
| NO. of tables | 1 | 2 | 1 | 2 | 1 | 2 | |
| Work Load on table | KG | 500 | 500 | 750 | 750 | 2000 | 2000 |
| Abrasive Flow rate | KG/MIN | 150 | 150 | 200 | 250 | 300 | 300 |
| Exhaust Air | CFM | 1300 | 1300 | 1300 | 1700 | 3000 | 3000 |
| Total | H.P. | 11 | 12 | 13.5 | 24 | 34.5 | 35.5 |
Quality Space Centre is the premiere table type shot blasting machine Manufacturers are entirely ground-breaking in all the aspects. It has been extensively designed with airless, automatic, and simple handled machines for more applications. At quality space centre, the leading Shot Blasting Machine Manufacturer in Faridabad, India, brings you the finest rotary table machine based on the unique source with the single and double door based on the production rate well the desired output. It is most suitable for the immense to small foundry industries in a more state-of-art way.
